5.0 Mm Military Defensive Army Defensive Barrier Wall For Metal Fences

Name: 50 Mm Military Defensive Army Defensive Barrier Wall For Metal Fences
Brand: Shuxin
Price: 1 USD

Brand Name : Shuxin

Model Number : SX-1 to SX-19

Certification : CE, ISO, SGS, SASO, PVOC,COC, FM A, FM E

Place of Origin : CN army defensive barrier wall

MOQ : 100 UNITS

Price : Negotiated

Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal, T/A

Supply Ability : 300 Units per week

Delivery Time : 15 working days

Packaging Details : Pallet army defensive barrier wall

Model : SX-9

Type : 6+6 CELLS

Mesh Diameter : 4.0mm

Surface Treatment : Hot Dipped Galvanized before Welding

Material : Galvanized Iron Wire

Key word : army defensive barrier wall

Contact Now

5.0 MM Military Defensive army defensive barrier wall For Metal Fences

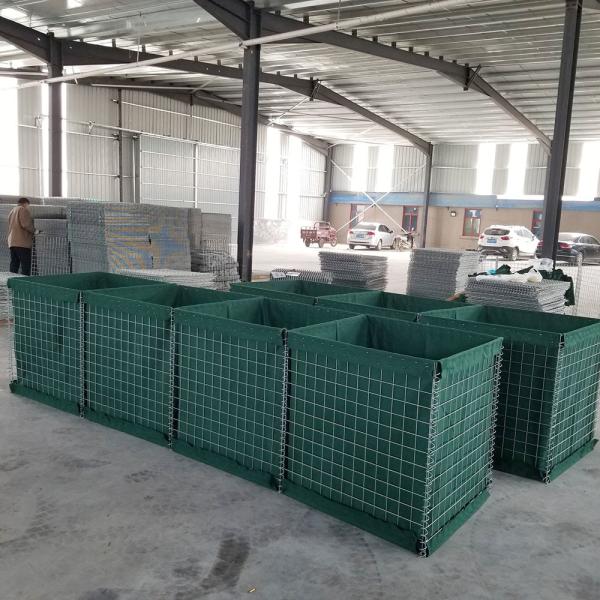

barriers is a modern gabion primarily used for flood control and bastion fortifications. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against small-arms fire, explosives and flood control.
5.0 Mm Military Defensive Army Defensive Barrier Wall For Metal Fences
The Technical Specifications from KN-1 to KN-19

KN MIL 1	4'6" (1.37m)	3'6" (1.06m)	32'9" (10m)	5+4 cells
KN MIL 2	5+4 cells	2' (0.61m)	4' (1.22m)	2 cells
KN MIL 3	3'3" (1.00m)	3'3" (1.00m)	32'9" (10m)	5+5 cells
KN MIL 4	3'3" (1.00m)	5' (1.52m)	32'9" (10m)	5+5 cells
KN MIL 5	2' (0.61m)	2' (0.61m)	10' (3.05m)	5 cells
KN MIL 6	5'6" (1.68m)	2' (0.61m)	10' (3.05m)	5 cells
KN MIL 7	7'3" (2.21m)	7' (2.13m)	91' (27.74m)	5+4+4 cells
KN MIL 8	4'6" (1.37m)	4' (1.22m)	32'9" (10m)	5+4 cells
KN MIL 9	3'3" (1.00m)	2'6" (0.76m)	30' (9.14m)	6+6 cells
KN MIL 10	7'3" (2.21m)	5' (1.52m)	100' (30.5m)	5+5+5+5 cells
KN MIL 11	4' (1.22m)	12" (0.30m)	4' (1.22m)	2 cells
KN MIL 12	7' (2.13m)	3'6" (1.06m)	108' (33m)	5+5+5+5+5+5 cells
KN MIL 13	9' (2.74m)	3'6" (1.06m)	10'5" (3.18m)	6 cells

The Application for Defensive Hesco Bation Barrier:

1. Military Fortifications
2. Shooting Range
3. Perimeter Security

The frame is made of high-strength galvanized steel wire welded together, offering exceptional strength and durability.
It can be folded when not in use or transported and unfolded when deployed, making it very flexible. army defensive barrier wall

Panel Size : 0.61×0.61m, 1x1m, 1.2×1.2m, 1.5×1.5m, or Customize to request.
Wire Diameter : 3~6mm Galvanized steel wire
Mesh Size : 2″x 2″, 3″ x 3″ (76.2mm x 76.2mm), 4″x 4″
Spring Wire Diameter : 3~6mm Hard steel wire
Joining Pins : 3~6mm Galvanized hard steel wire
Surface Treatment : Hot dipped galvanized, Electro galvanized, Al+Zn Alloy Wire

Non-woven Geotextile Lining

The interior non-woven geotextile lining is used to fill with soil, sand or other filling materials to provide additional protection and stability.

Materials : Heavy-duty non-woven polypropylene cloth
Weight : 200g/m², 300g/m², 400g/m²

Colors: It is usually beige, but can also be customized as olive green or white

5.0 Mm Military Defensive Army Defensive Barrier Wall For Metal Fences

Connection Accessories
Using these connectors, individual fort units are connected to form a continuous defensive barrier.

5.0 Mm Military Defensive Army Defensive Barrier Wall For Metal Fences

Packaging and delivery

Selling Units	Single item
Single package size	55X55X5 cm
Single gross weight	5.000 KG

The Recoverable ML units are deployed in exactly the same way as the standard ML products. Once the mission is over, efficient recovery for disposal can begin. To recover the units for disposal simply open the cell by removing the pin, this allows the fill material to flow freely from the cell. The units can then be recovered fully intact and flat packed for transportation for recycling or disposal, providing substantial reduction in logistical and environmental impact.
