Heavy Zinc Coated Welded Gabion Box Defensive Barrier 4mm Wire

Brand Name : KN

Model Number : KN-D03

Certification : ISO CE

Place of Origin : Hebei,China

MOQ : 10 pcs

Price : USD 13.88-USD 29.98

Payment Terms : T/T,Western Union,L/C

Supply Ability : 10000 pcs/month

Delivery Time : 7-15 days

Packaging Details : Wooden pallets

Spring Wire Diameter : 3.0MM, 4.0mm

Features : Strong, Anti-Rust

Packing : pallet or carton

Durability : Highly durable and long-lasting

Material : High-strength composite materials

Mesh Diameter : 4.0mm Diameter Wire

Advantage : Easy Assembled

Panel Size : 0.61m x0.61m, also can be customized

Key Words : Defensive barrier bastion

Weight : Lightweight and easy to carry

Accesssories : geotextile

Wire Diameter : 4mm,5mm

Spring Diameter : 4.0mm

Hole Size : 76.2X76.2mm

Contact Now

Heavy Zinc Coating Welded Gabion Box Explosion-proof Sand Wall Defensive Barrier

Product description

Defensive Gabion

Product Type :Welded mesh Material Galvanized steel wire or Galfan/zinc-5%aluminum wire

Wire Diameter 3.0-5.0mm

Geotextile 250g-400g

Geotextile colour sand clolor, Brown, Gray,and Green.

Mesh hole 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm

Product details
We supply customized any sizes you need !
  MODEL
 HEIGHT
 WIDTH
 LENGTH
 WEIGHT
 No. of CELLS

 KN 1
 4'6"(1.37m)
 3'6"(1.06m)
 32'9"(10m)
 149(kg)
 9
  1*4+1*5cells

 KN 2
 2'(0.61m)
 2'(0.61m)
 4'(1.22m)
 10(kg)
 2
 1*2 Cells

 KN 3
 3'3"(1.00m)
 3'3"(1.00m)
 32'9"(10m)
 113(kg)
 10
 2*5 Cells

 KN 4
 3'3"(1.00m)
 5'(1.52m)
 32'9"(10m)
 155(kg)
 10
 2*5 Cells

 KN 5
 2'(0.61m)
 2'(0.61m)
 10'(3.05m)
 22(kg)
 5
 1*5 Cells

 KN 6
 5'6"(1.68m)
 2'(0.61m)
 10'(3.05m)
 66(kg)
 5
 1*5 Cells

 KN 7
 73"(2.21m)
 7"(2.13m)
 91'(27.74m)
 936(kg)
 13
 2*4+1*5cells

 KN 8
 4'6"(1.37m)
 4'(1.22m)
 32'9"(10m)
 153(kg)
 9
 1*4+1*5cells

 KN 9
 3'3"(1.00m)
 2'6"(0.76m)
 30'(9.14m)
 101(kg)
 12
 2*6cells

 KN 10
 7'3"(2.21m)
 5(1.52m)
 100'(30.50m)
 1040(kg)
 20
 4*5cells

 KN 12
 84"(2.13m)
 42"(1.06m)
 108(33m)
 813(kg)
 30
 6*5cells

 KN 19
 108"(2.74m)
 42"(1.06m)
 10'5"(3.18m)
 198(kg)
 6
 1*6cells



Product advantages
1. Collapsible
It is assembled by Panel and Spring Wire, When Loading and transportation, It is Foldable into one piece.
2. Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years even more longer, fit for outside protection.
3. Easy Installation
After getting it, Just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 persons can finishit.
4. Quick Displacements
When you want to use it in another place,Just to move it, It can use many times
5. Easy to repair
If some part is destroyed, Just left it and connect the new one is okay.
Our workshop
 Welcome contact Lisa!

Product Tags:

heavy zinc coated gabion box

welded gabion defensive barrier

4mm wire gabion box

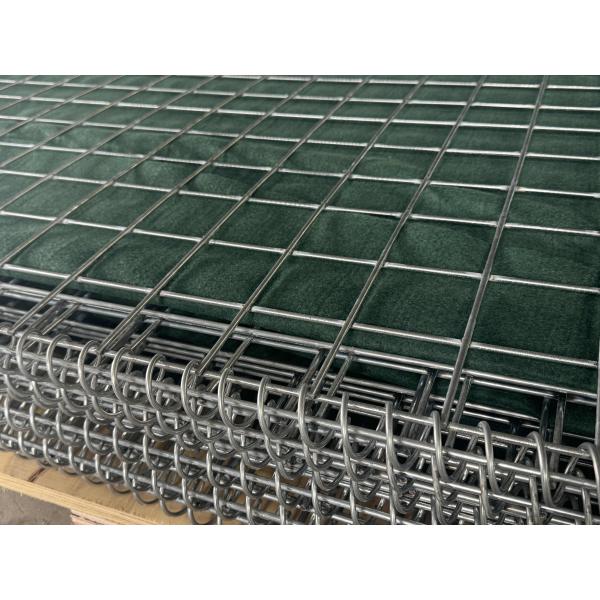

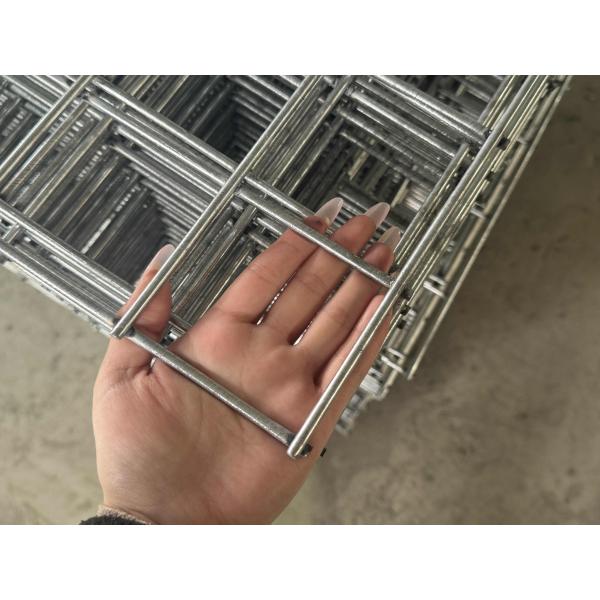

Heavy Zinc Coated Welded Gabion Box Defensive Barrier 4mm Wire Images
